Printrbot Pivoting Fan Mount
theshort
Location
Salt Lake City
| Filename | Downloads | Size | Uploaded | |
|---|---|---|---|---|
| img_3425_display_large.jpg | 1365 | 329 kB | on 30/5/14 | Download |
| mount_plate_v2.stl | 1253 | 59 kB | on 30/5/14 | Download |
| rotating_fan_mount_stock_fan.stl | 1321 | 297 kB | on 30/5/14 | Download |
| rotating_fan_mountv2_r.stl | 1279 | 136 kB | on 30/5/14 | Download |
| wp_20131110_001_display_large.jpg | 1325 | 150 kB | on 30/5/14 | Download |
| wp_20131231_007_display_large.jpg | 1324 | 147 kB | on 30/5/14 | Download |
| assembly1_display_large.jpg | 1338 | 114 kB | on 30/5/14 | Download |
Description

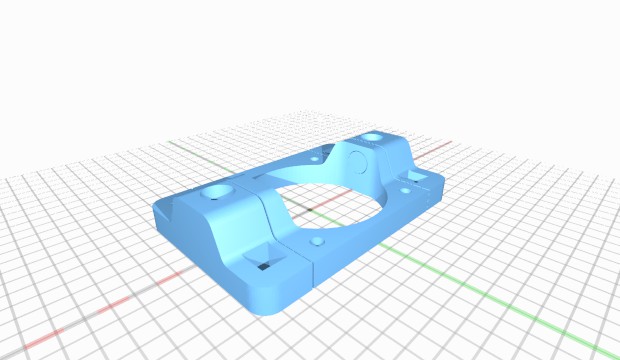

I have uploaded a version to accommodate the stock PB fan. It should clear the LC extruder plate now. I do not have a stock fan at the moment so if anyone prints this let me know how it works.
This is designed to print all one piece.

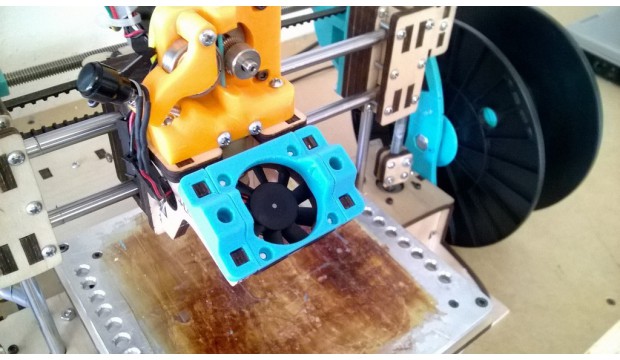

I've found that I need a fan on my PEEK for ABS and the fan on the print with PLA. This is designed to swivel when needed.

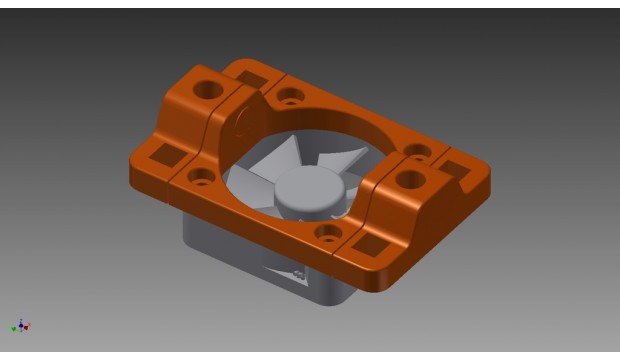

This fits a generic 40mm fan from Radio Shack. Unfortunately you have to modify your LC extruder mounting plate so it can swivel.

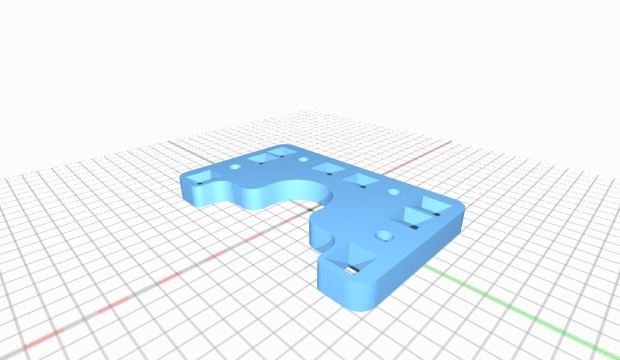

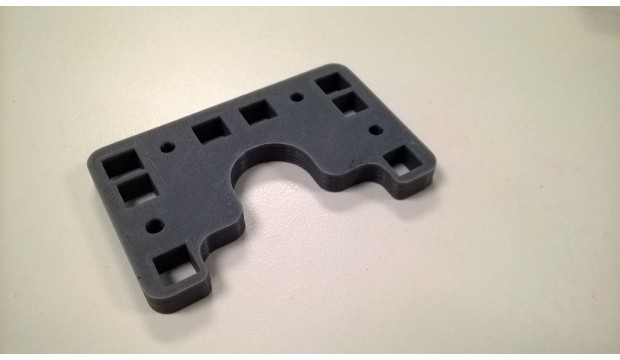

I have added a top plate to clear the larger 40x10mm fan.
License
Attribution - Creative Commons
